Extraction

Rippert Drehkolbengeblaese

Medium-pressure conveying system for wood chips
approx. 4 tons per hour
Conveying line originally 180 m, 150 mm, partially available
Air flow rate approx. 2,350 m³/h
Motor power Three-phase motor according to IEC 55 kW
Degree of protection IP54

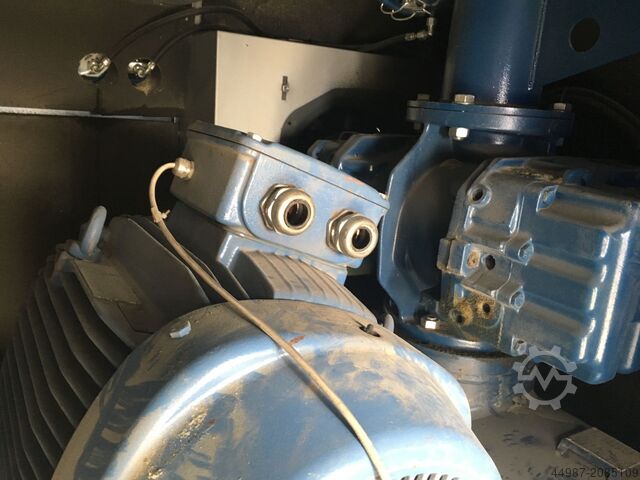

1 Housing made of high-quality gray cast iron, equipped with two axis-parallel and centrally arranged, dynamically balanced rotary pistons, with hardened and ground, helically toothed precision control gears, each mounted in roller bearings. Drive via V-belts, with the two pulleys and the associated high-performance narrow V-belts, as well as a protective cover.
1 Drive unit with motor mounting rails, shaft connection with easy-to-assemble taper-lock clamping sleeves, completely mounted on a common base frame.
Bljdpfx Apeb Uyizobep
1 Combined intake filter silencer (absorption silencer)
1 Resonance absorption pressure silencer, designed as a base frame
1 Base frame
1 Pressure valve
1 Check valve
1 Elastic connecting sleeve with clamps
1 Manometer
1 Set of vibration isolators with mounting screws
1 Electrical pressure monitoring consisting of a pressure transmitter and a display device, as well as an electrical output signal
1 Sound enclosure made of galvanized sheet steel with an oil collection tray
and ceiling coating RAL 5001, segment design with internal lining and forced ventilation, fan wheel driven by the blower shaft. Sound enclosure for outdoor installation.
